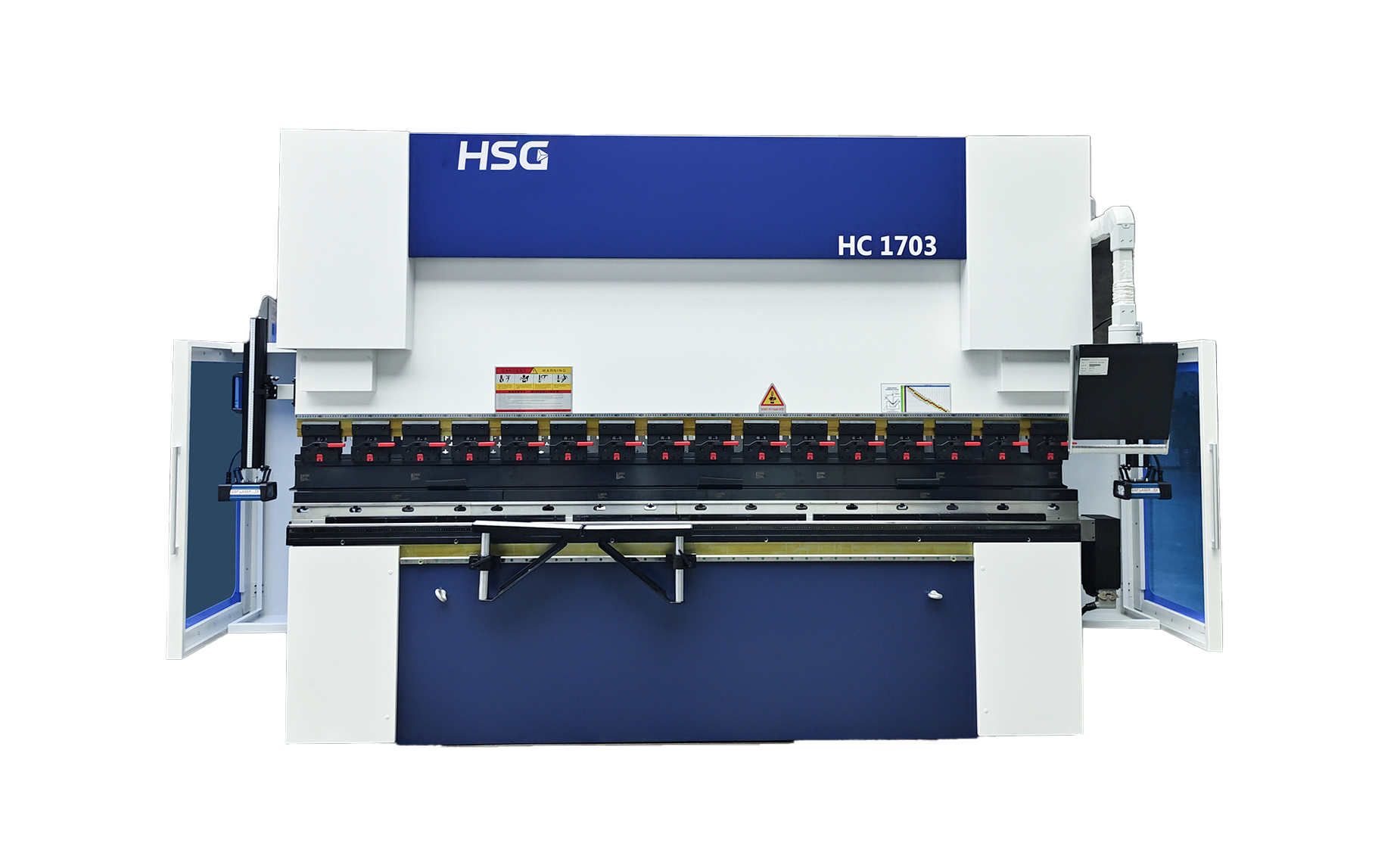

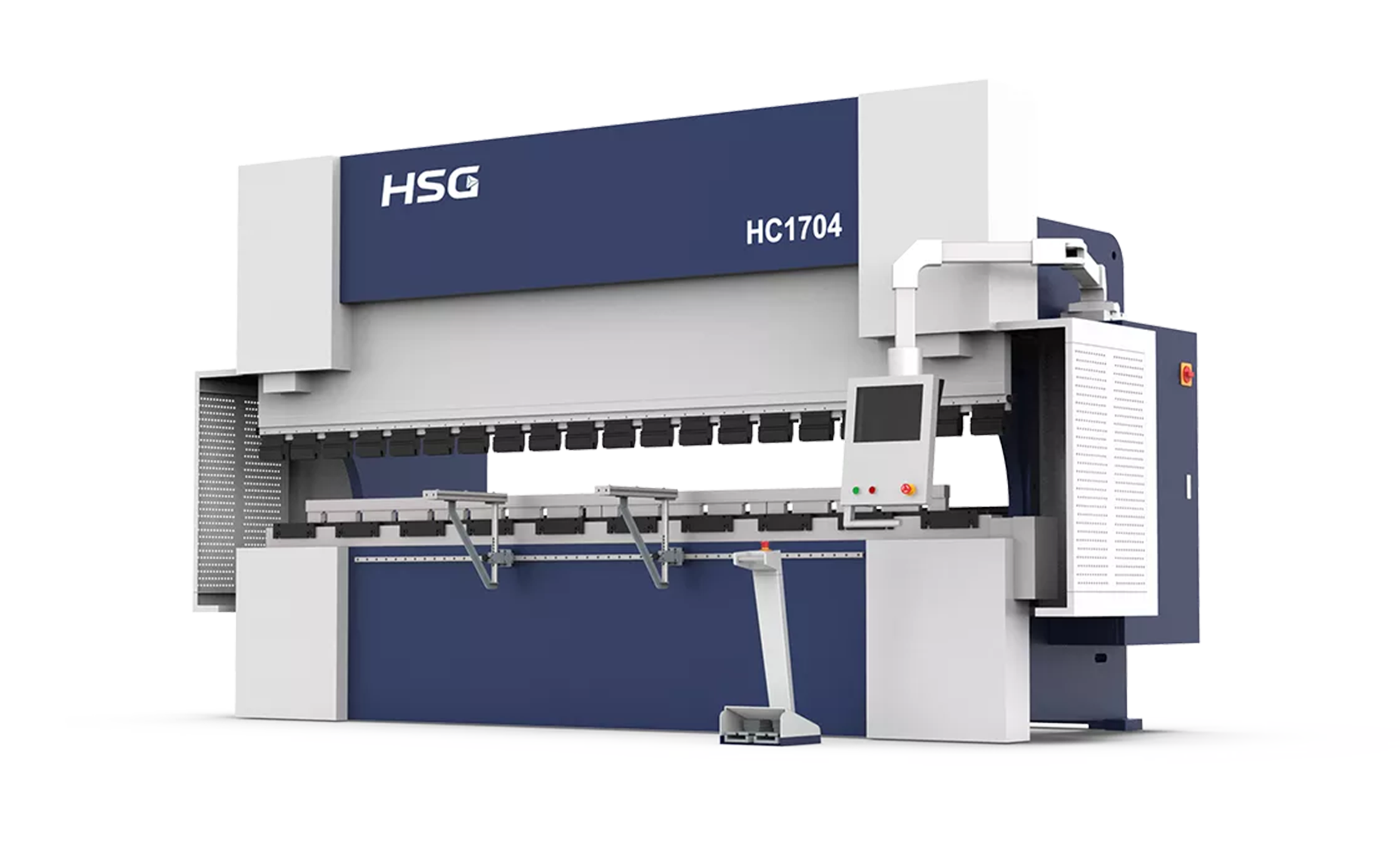

HC Series
A Bending Machine That Combines
High-quality Processing and Cost-Effective

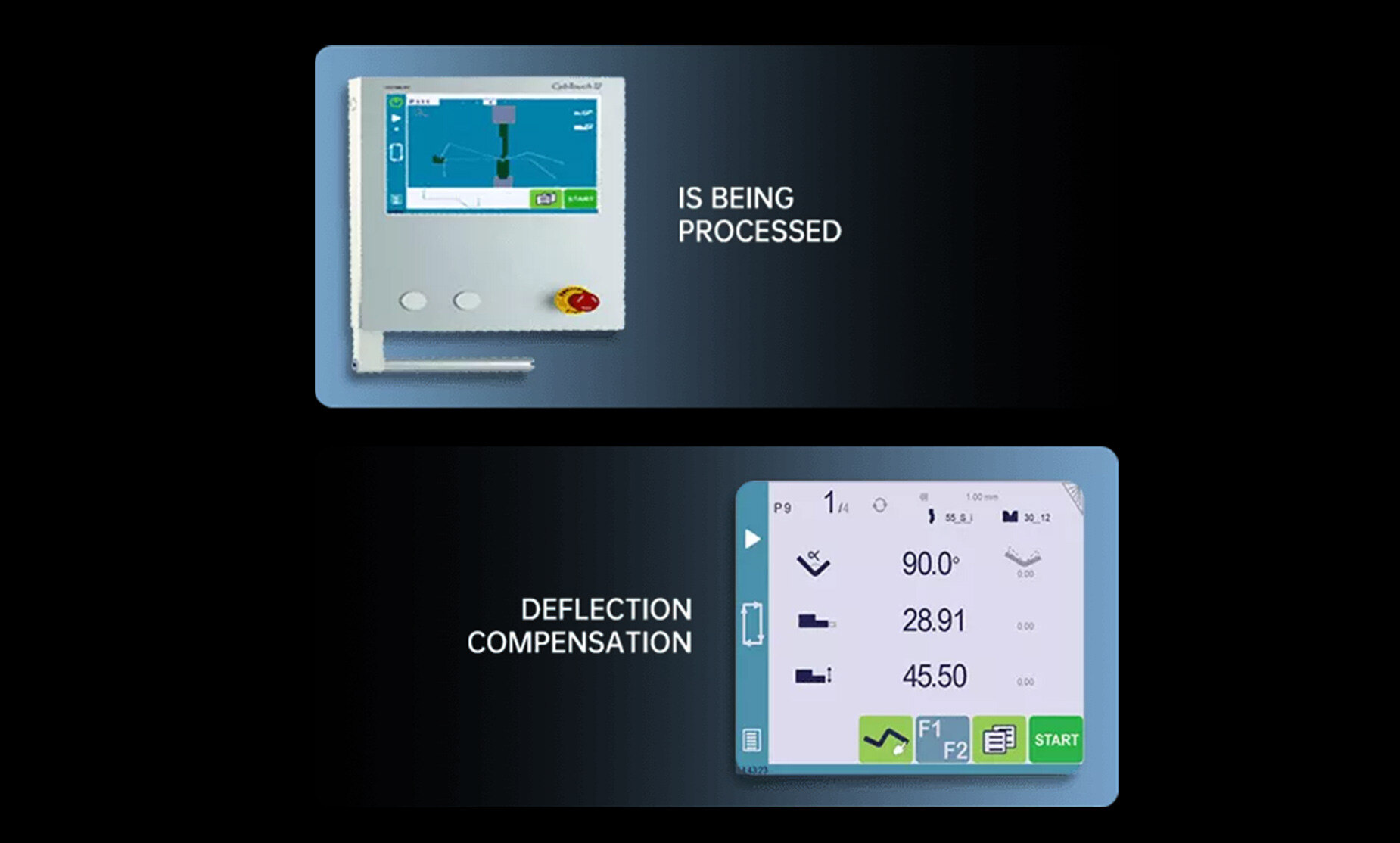

Switzerland (CYBELEC) CybTouch 12PS Control System
* Automatically calculate bending angle, main pressure and deflection compensation
* Correct the bending angle and back gauges
* Make mass bending possible with high-efficient programming
* Enable wireless interconnection via desktop or notebook computer for software upgrades and data backup anytime
* Correct the bending angle and back gauges
* Make mass bending possible with high-efficient programming
* Enable wireless interconnection via desktop or notebook computer for software upgrades and data backup anytime

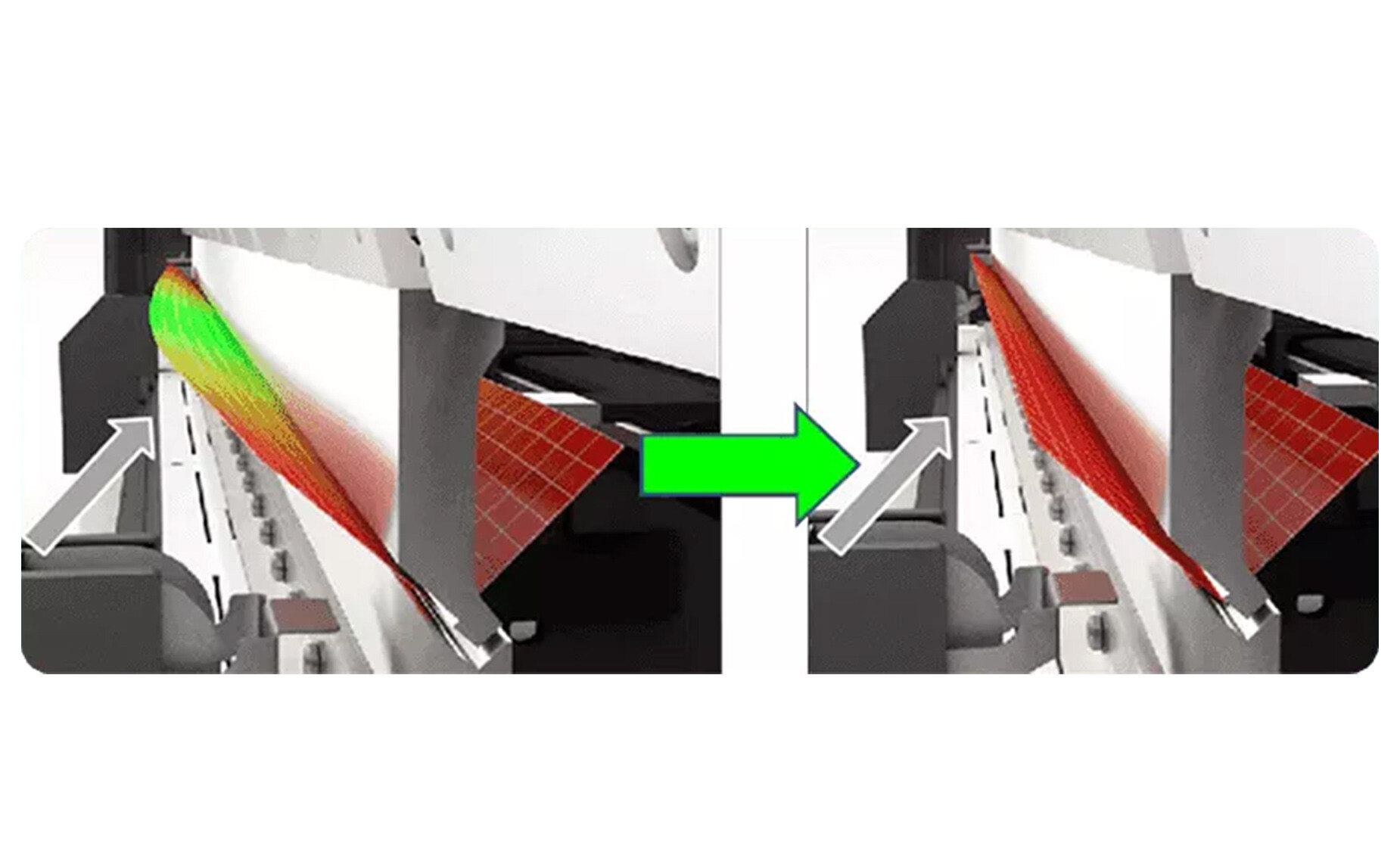

Automatic Compensation System for Mechanical Deflection
* Compensate the bending station laterally and vertically
* Calculate compensation based on length, thickness and angle of bending workpiece
* Take accurate control of compensation precision as a result of a high-precision potentiometer
* Calculate compensation based on length, thickness and angle of bending workpiece
* Take accurate control of compensation precision as a result of a high-precision potentiometer

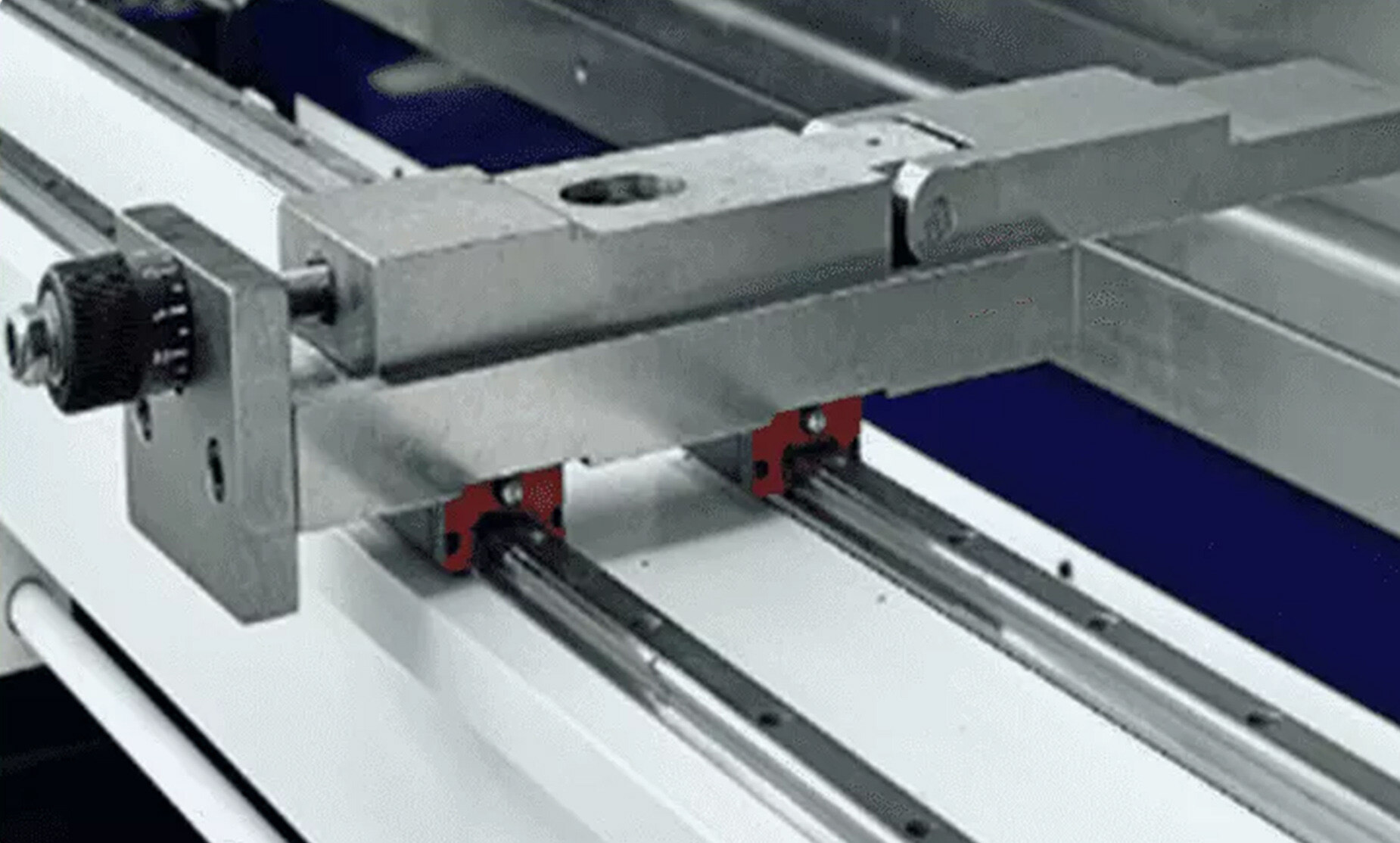

Post-positioning System
* Servo motor drives it to move backward and forward (X-axis), up and down (Y-axis)
* Configure four positioning fingers to prevent materials from sagging and defectives caused by any error
Highly-rigid Heavy Frame
* Welded by using high-quality carbon steel, creating high strength and rigidity

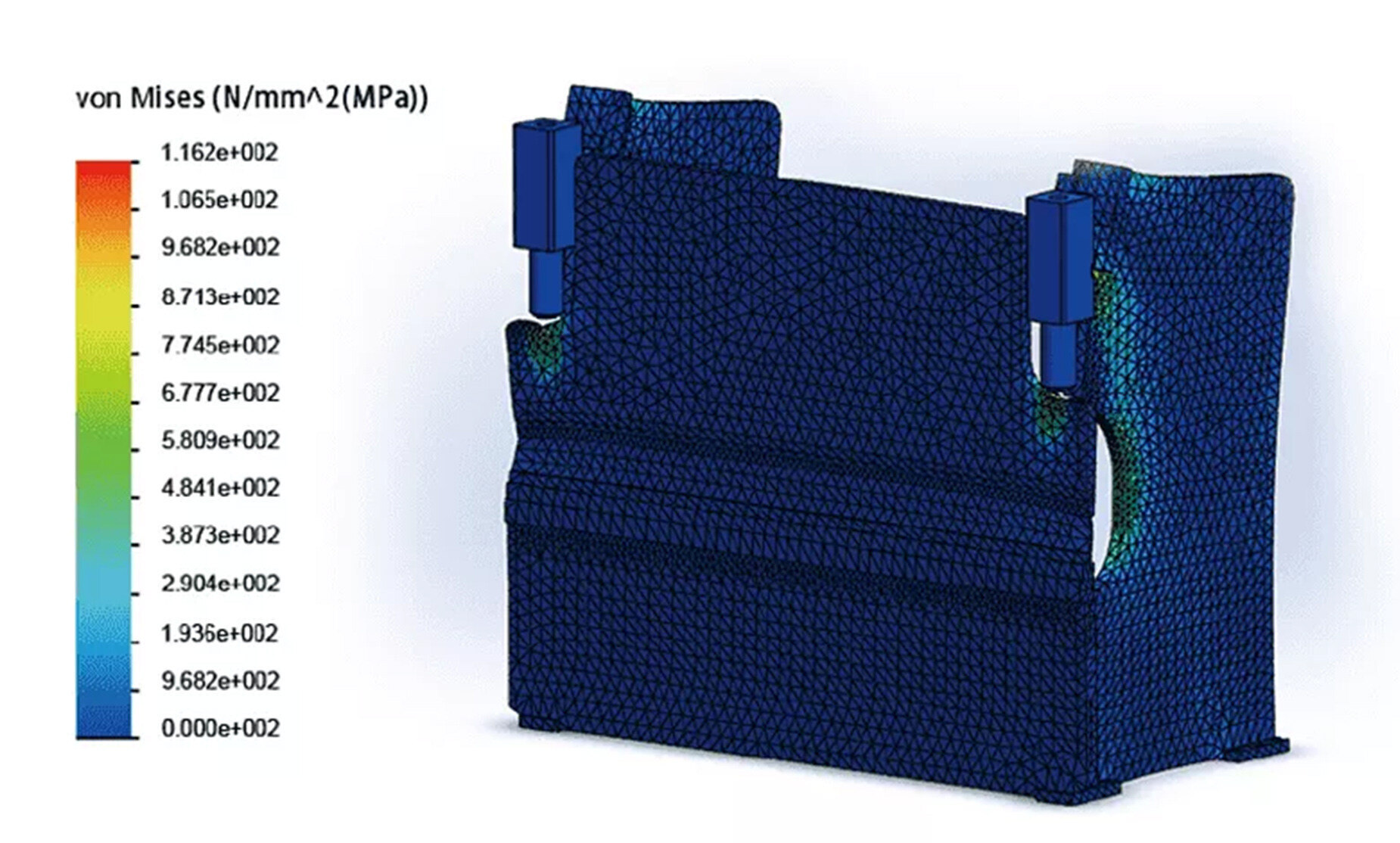

* Carry out finite element analysis, ensuring tiny deformation
* Once clamping and integral machining for totally guaranteed precision
HC Technical Specifications
For more details, feel free to reach out to us!
|
Model
|
HC1103
|
HC1703
|
HC2204
|
|
Bending Force
|
110 Ton
|
170 Ton
|
220 Ton
|
|
Working Table Length
|
3200mm
|
3200mm
|
4100mm
|
|
Y-axis Power
|
8.5kW | 18kW | 22kW |
|
Slider Stroke
|
200mm | 200mm | 200mm |
|
Maximum Opening Height
|
470mm | 470mm | 470mm |
|
Throat Depth
|
400mm | 400mm | 400mm |
