# R1 Series

Laser power
**1.5-6 \[kW\]**
Weight of Single Tube
**80kg**
Max Linkage Speed
**150m/min**

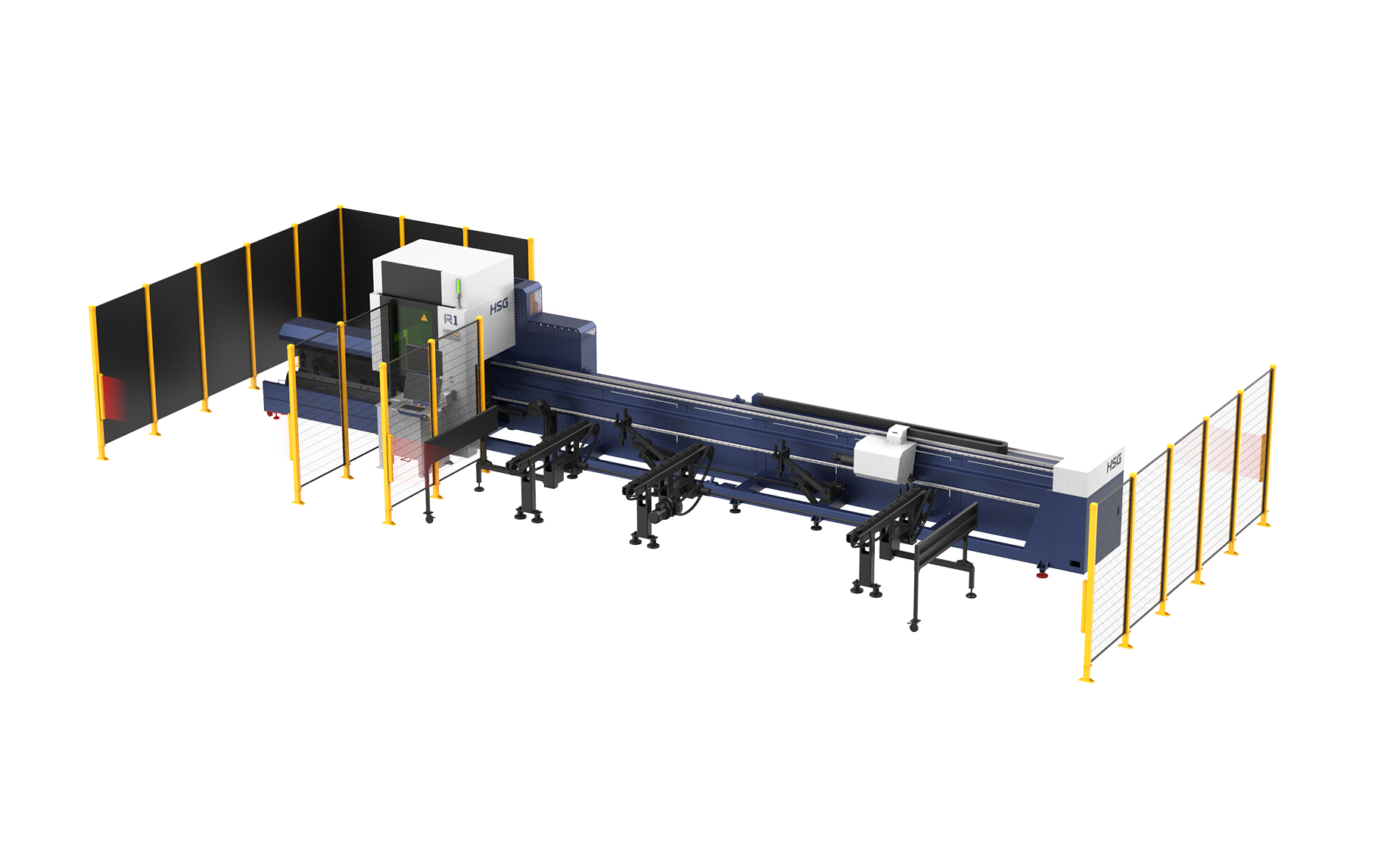

## Fast and High-quality Laser Cutting Solutions of Tiny Tube

![202505-R1V2.0-CE+多管上料.1083-1](https://in.hsglaser.com/hubfs/202505-R1V2.0-CE+%E5%A4%9A%E7%AE%A1%E4%B8%8A%E6%96%99.1083-1.png "202505-R1V2.0-CE+多管上料.1083-1")

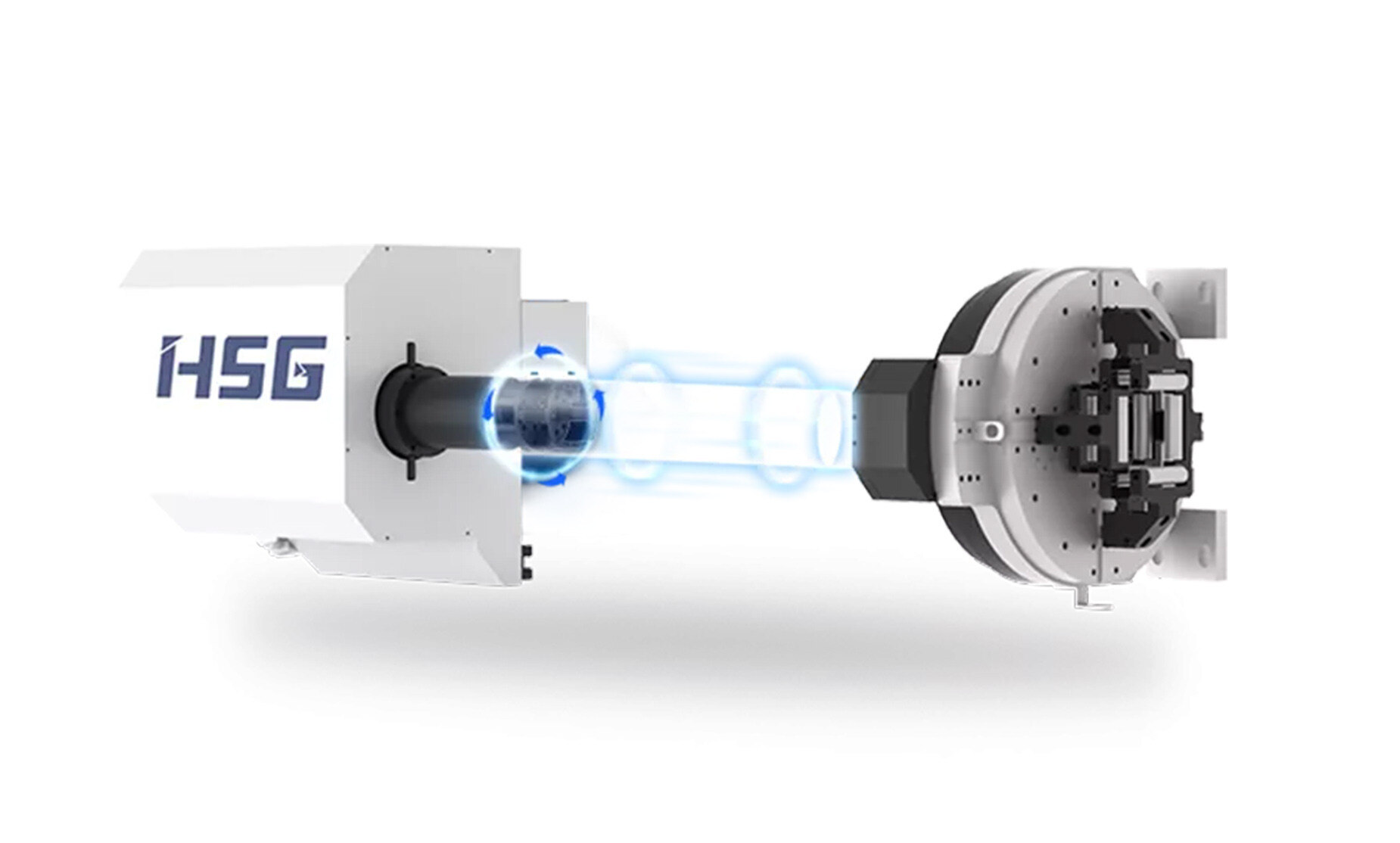

## Fast and high-quality cutting of tiny tubes

Minimum diameter for round tube: 8mm
Minimum edge length of square tube: 8mm



![1-1](https://in.hsglaser.com/hubfs/1-1.jpg "1-1")

![2-2](https://in.hsglaser.com/hubfs/2-2.jpg "2-2")

## High dynamic performance

Speed of chuck:150m/min
Rotation speed of chuck: 150r/min
Acceleration of chuck:1.5G
Increasing the production efficiency and productivity , significantly reduce your lead times.

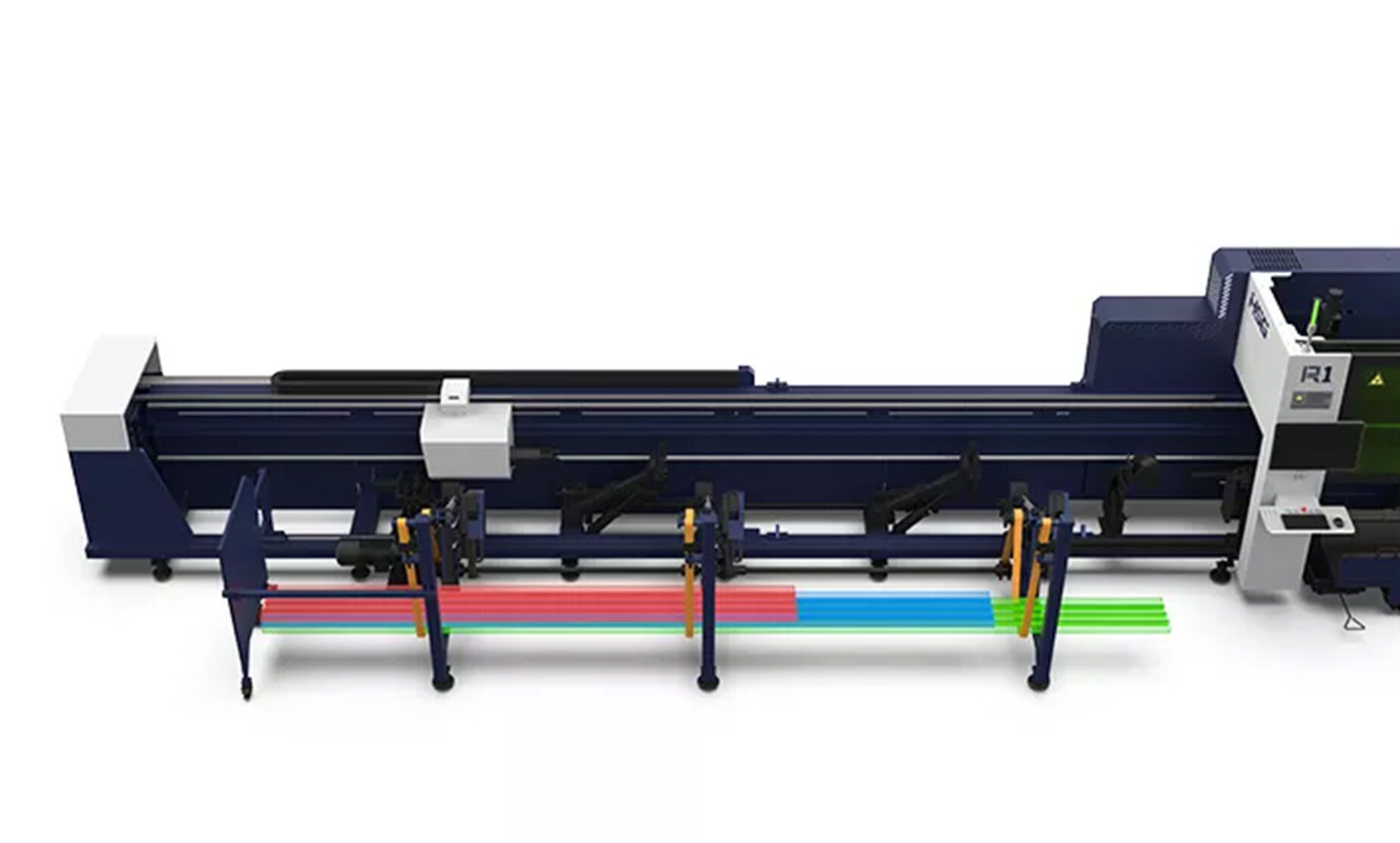

## Efficient Multi-mode Loading

\* R1 Series matches with automatic material racks to achieve loading material in 20s.

\* Automatic material racks can support the tubes with 15mm-120mm(0.59''-4.72'') diameter and 4.8m-6.5m(15.75'-21.33') length.

\* Automatic material rack is compatible with semi-automatic loading mode for loading one by one.



![3-2](https://in.hsglaser.com/hubfs/3-2.jpg "3-2")

![4-Jun-11-2025-09-56-17-1418-PM](https://in.hsglaser.com/hubfs/4-Jun-11-2025-09-56-17-1418-PM.jpg "4-Jun-11-2025-09-56-17-1418-PM")

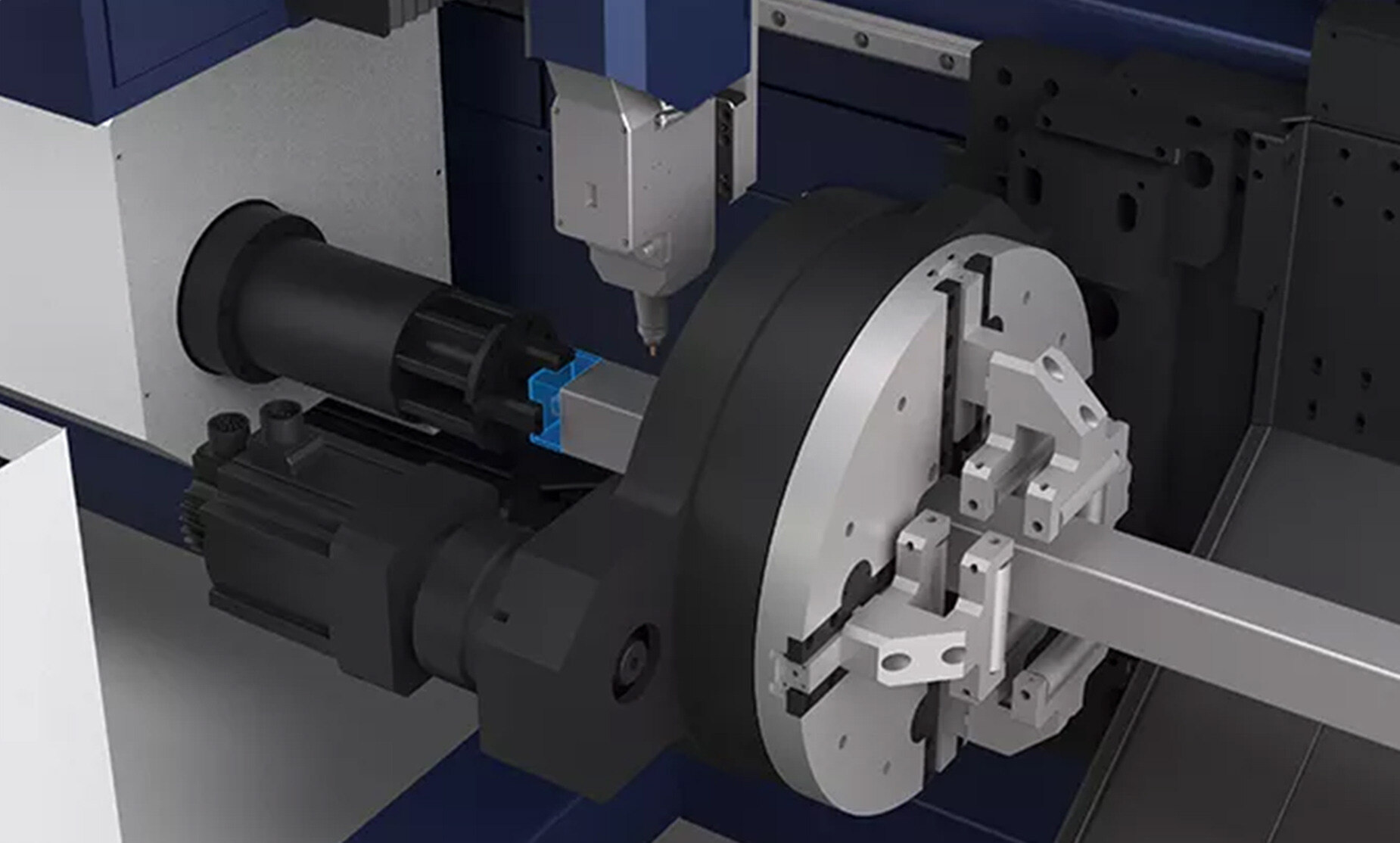

## Chuck Jumping for Short Tailings

\* Standard equipped with chuck jumping of the cylinder and R1 Series can shorten the large amplitude of tailing length through chuck jumping.
\* Jumping type of high-precision cutting can ensure the cutting accuracy of long tubes by chuck displacement.
\* Optional servo chuck jumping can finish chuck jumping action accurately and efficiently.

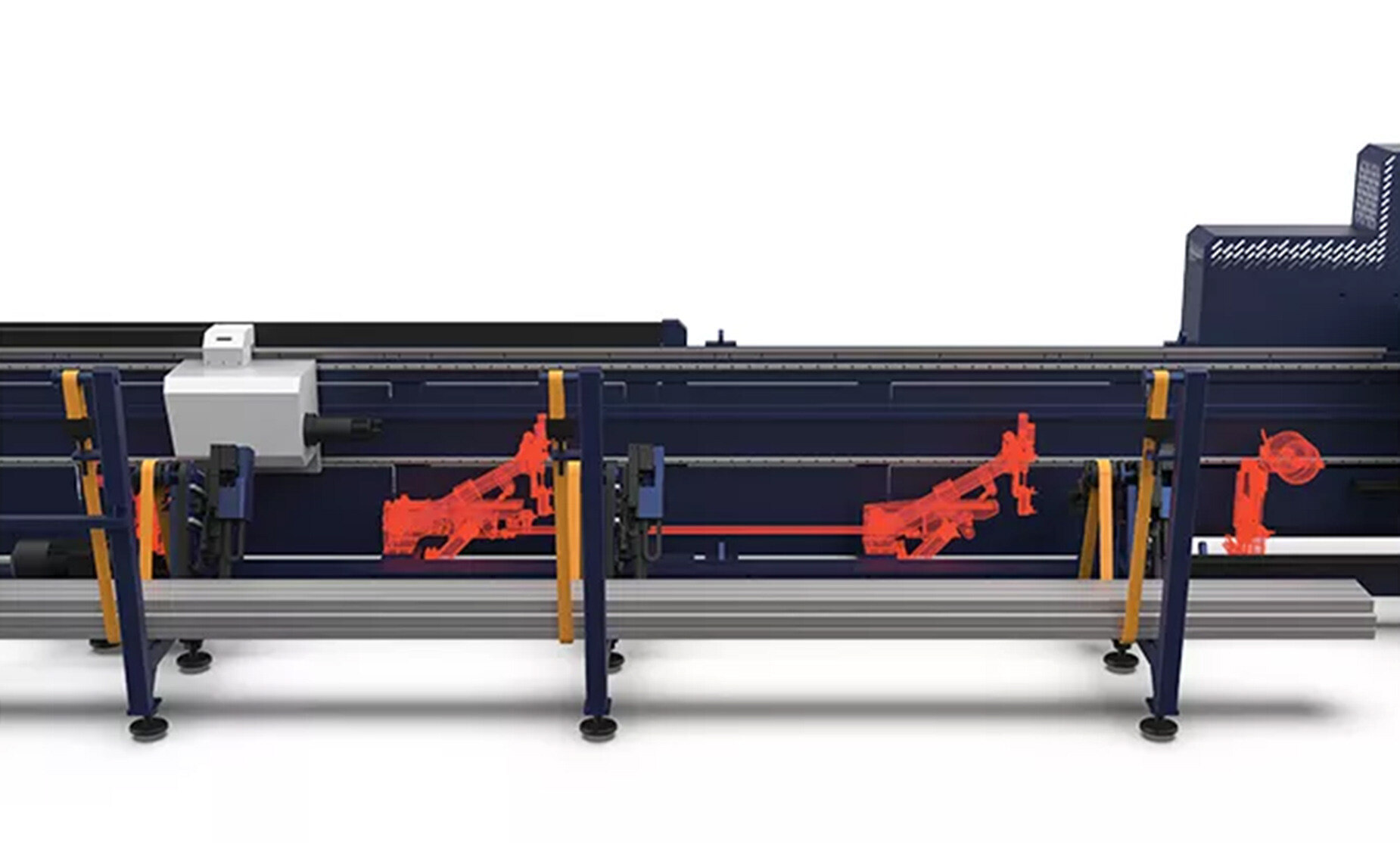

## Follow-up Support for High Precision

The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.



![5-Jun-11-2025-09-56-43-4539-PM](https://in.hsglaser.com/hubfs/5-Jun-11-2025-09-56-43-4539-PM.jpg "5-Jun-11-2025-09-56-43-4539-PM")

![6-4](https://in.hsglaser.com/hubfs/6-4.jpg "6-4")

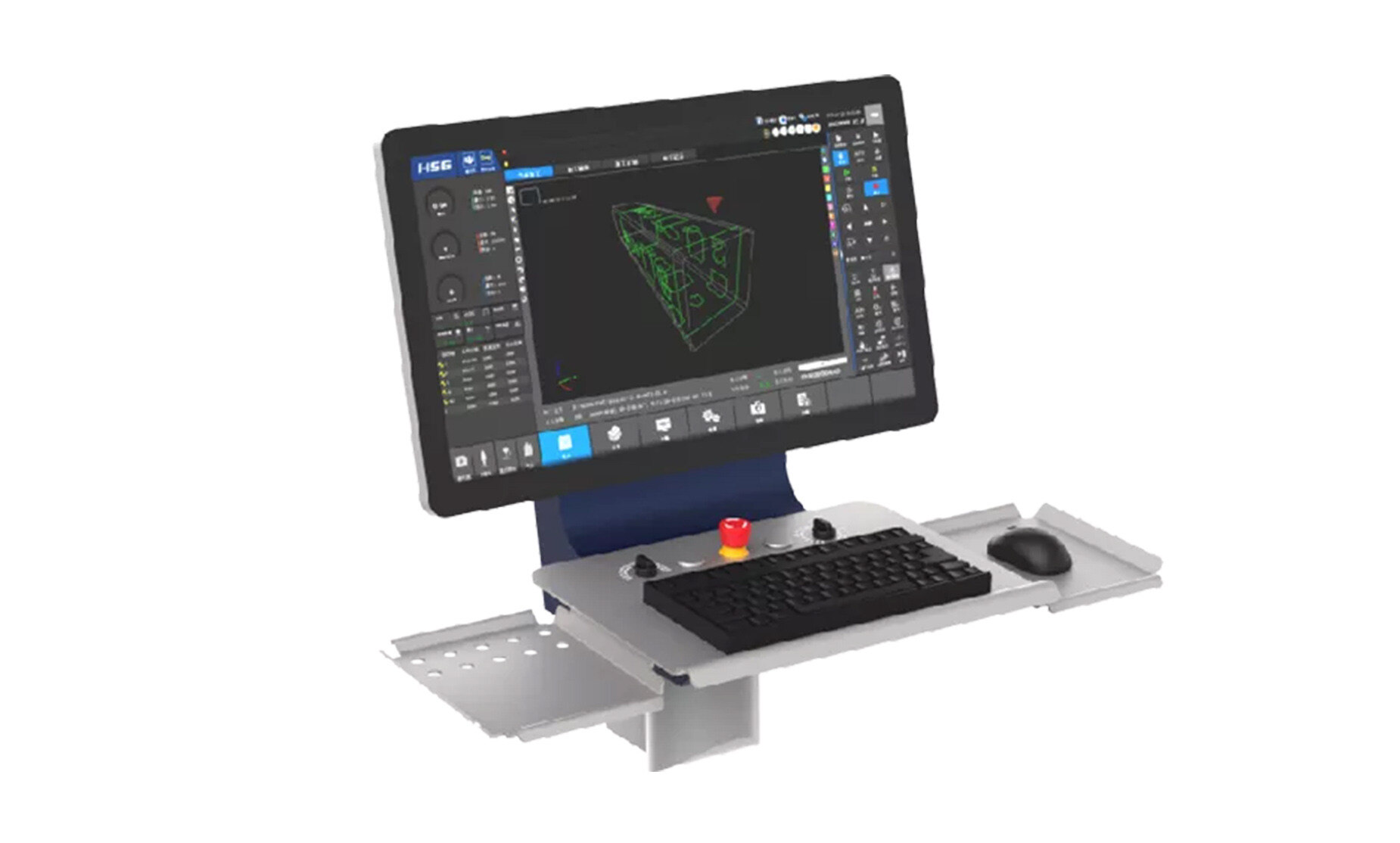

## Intelligent Bus Operating System

\* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand
\* R1 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.



# R1 Technical Specifications

For more details, feel free to reach out to us!

| **Model** | **R1** | **R1R** |
| --- | --- | --- |
| Power | 1.5-6kW | 1.5-6kW |
| Cutting Capacity of Round Tube | Φ8-120mm | Φ8-120mm |
| Cutting Capacity of Square Tube | □8\*8 - □120\*120mm | □8\*8 - □120\*120mm |
| Weight of Single Tube | 80kg | 80kg |
