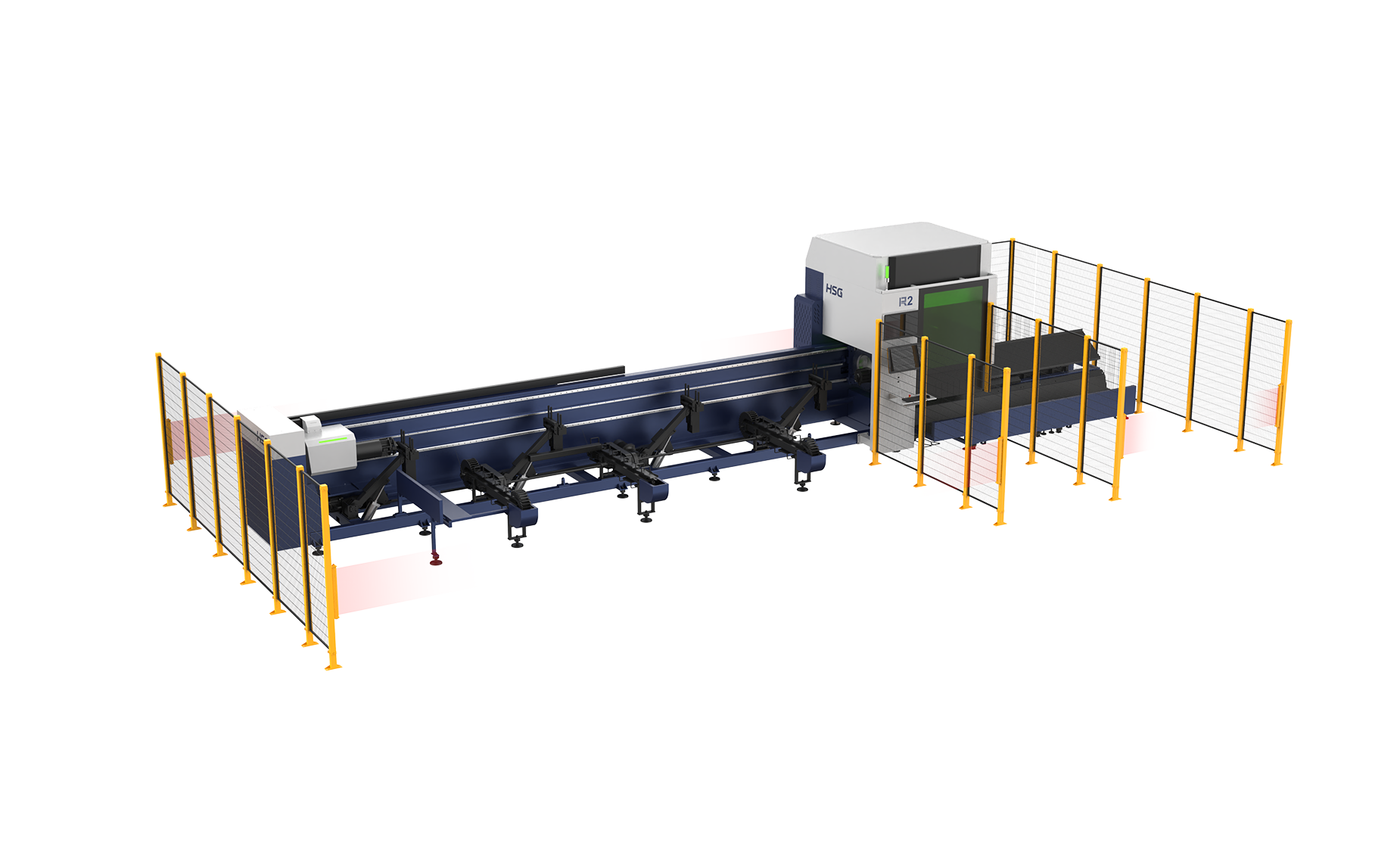

R2 Series
Laser power
3-6 [kW]
Max Tube Weight
300kg
Max Linkage Speed
120m/min
3-6 [kW]
Max Tube Weight
300kg
Max Linkage Speed
120m/min
Excellent Cutting Ability in Wide Range of Tube Processing
Superior tube processing capabilities for all your processing tasks
Wide range of tube cutting sizes：∅12-240mm (0.47''-9.45'')
Various type of tube shapes:round tube、square tube、L-profile 、H-profile
Long length of tube cutting: max. raw material length of up to 9m (29.53').
Various type of tube shapes:round tube、square tube、L-profile 、H-profile
Long length of tube cutting: max. raw material length of up to 9m (29.53').
Cost-effectively cutting of various tubes
Speed:120m/min (393.7 ft/min)

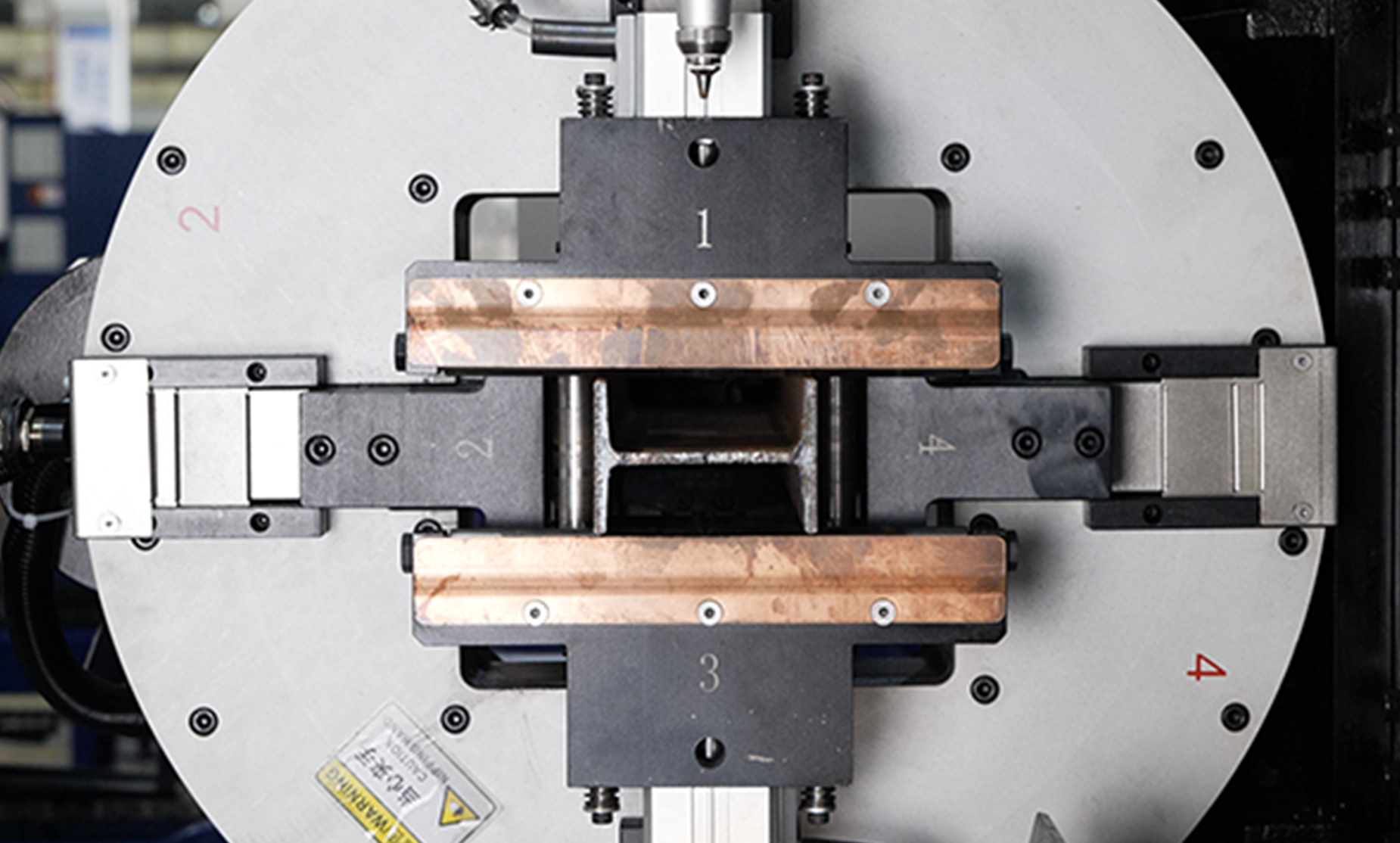

Chuck rotation speed:120r/min
High dynamic performance，faster tube processing efficiency
Chuck rotation speed:120r/min
High dynamic performance，faster tube processing efficiency
Versatile automation

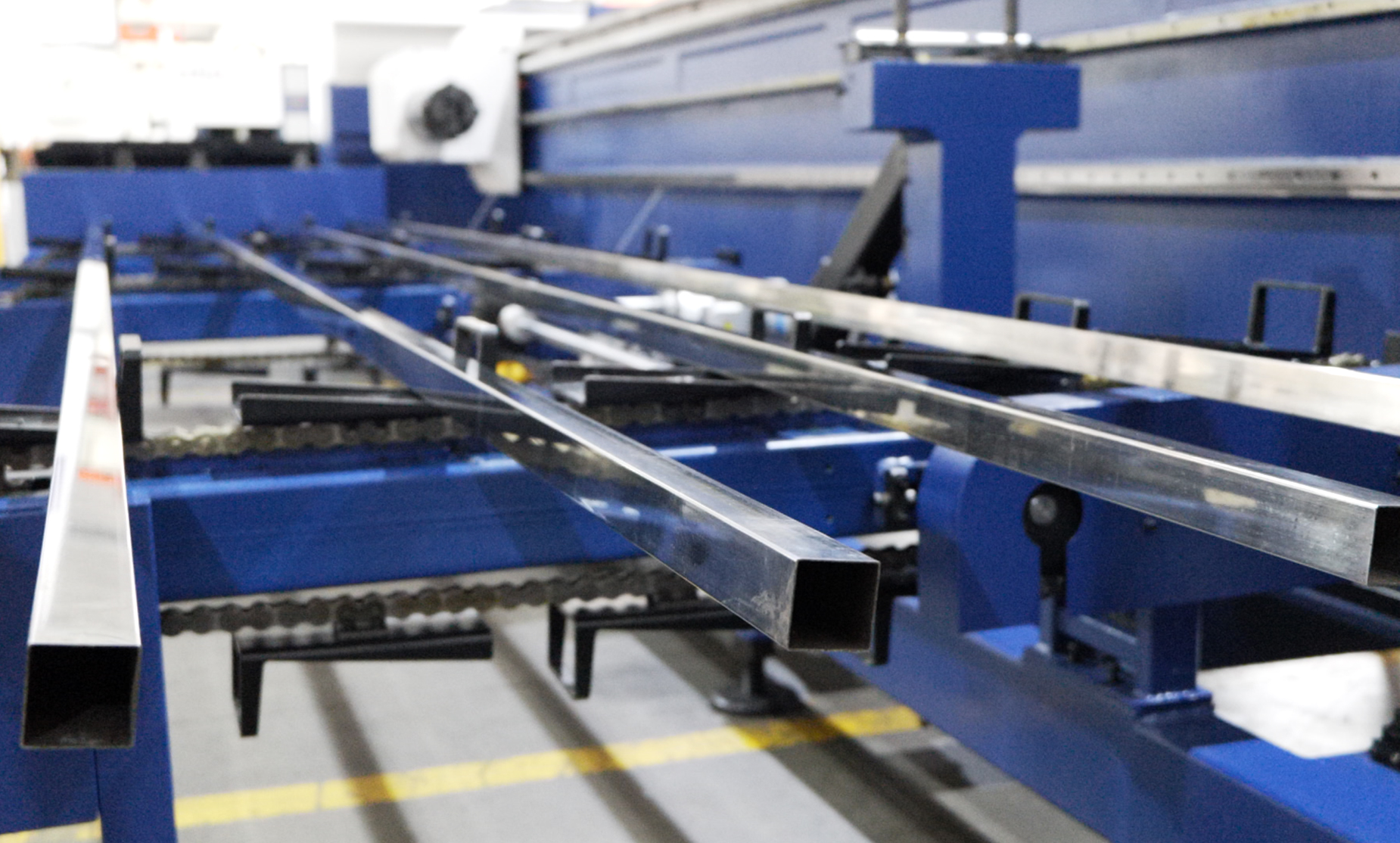

Automatic loading raw material quickly and easily
Automatic unloading of long finished part
Easy to operate
Easily accessible with minimum set up
Automatic and efficient nesting of tubes
Robust and Reliable

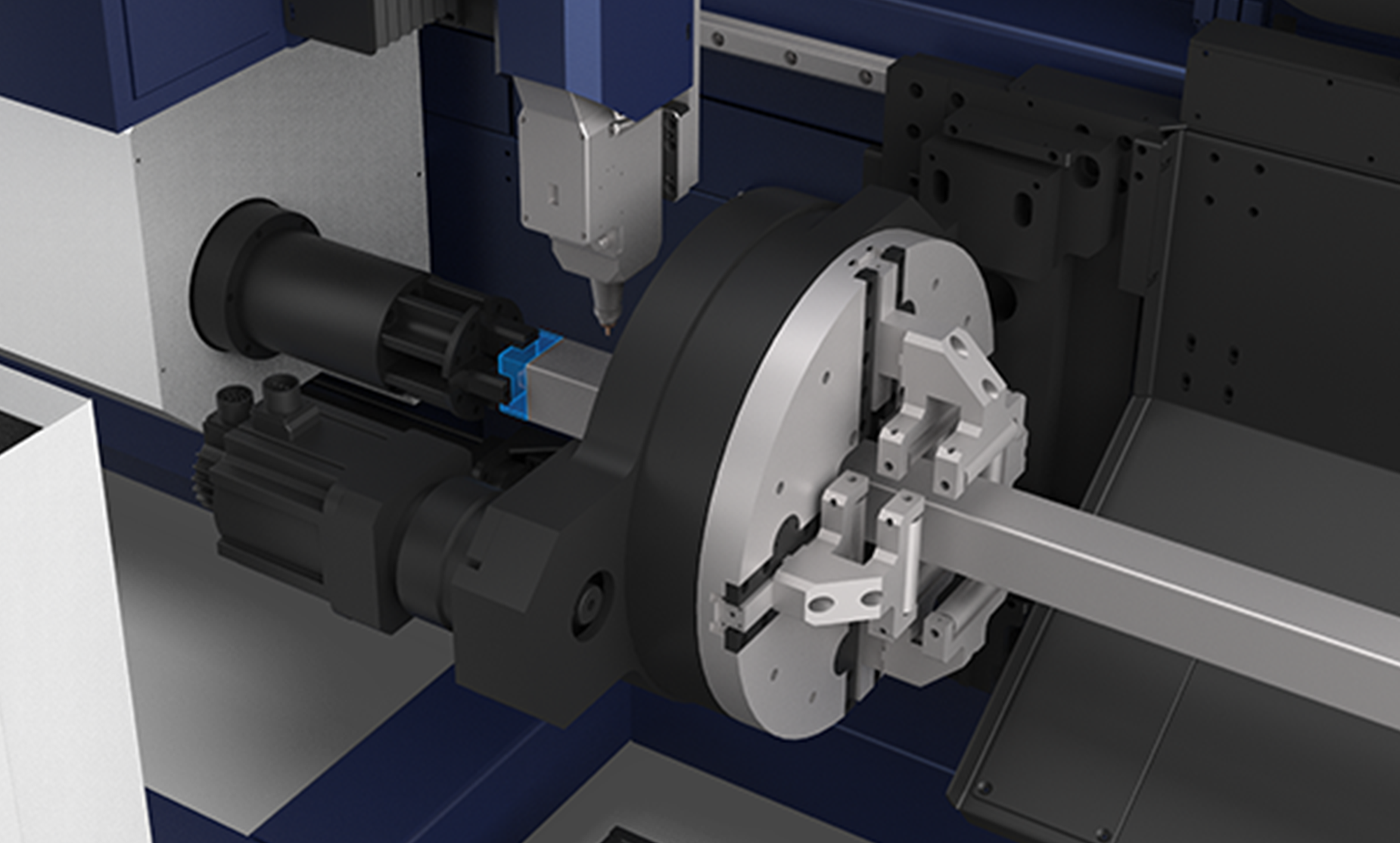

Standard-equipped pipe support mechanism,ensure the precision of tube cutting
Standard-equipped dust blowing system,prioritizing worker’s health
Standard-equipped dust blowing system,prioritizing worker’s health
Advanced Intelligent Cutting Solutions
Automatic measurement of the tube center,improve the accuracy of tube cutting
Corner anti-burn function，optimum cutting result
Short tail cutting, save materials and reduce costs
R2 Technical Specifications
For more details, feel free to reach out to us!
|
Model
|
R2
|
|
Power
|
3-6kW
|
|
Cutting Capacity of Round Tube
|
Φ12-240mm |
|
Cutting Capacity of Square Tube
|
□12×12 - □240×240mm |
|
Weight of Single Tube
|
300kg |
